What Is Network Vulnerability Assessment

New security flaws don't announce themselves. They sit quietly in outdated software, forgotten devices, and misconfigured firewalls until someone finds them, and it's a coin toss whether that "someone" is your IT team or an attacker.

In 2025 alone, 48,244 new CVEs (Common Vulnerabilities and Exposures) were published, up from 40,077 in 2024, according to CVE.org's metrics data. That's roughly 132 new vulnerabilities disclosed every single day. Meanwhile, the average global data breach now costs $4.99 million, per IBM's latest Cost of a Data Breach Report.

Businesses that skip regular vulnerability assessments are essentially flying blind through that noise. This guide breaks down what a network vulnerability assessment actually is, how the process works step by step, and how to build an ongoing program instead of a one-and-done checkbox exercise.

Key Takeaways

• A network vulnerability assessment systematically identifies, analyzes, and prioritizes security weaknesses across your infrastructure
• Differs from penetration testing: scans for known flaws instead of simulating live attacks
• Run assessments at least quarterly—more often in high-risk or regulated environments
• Prefer vendor-neutral guidance when choosing assessment tools and providers so recommendations stay unbiased

What Is a Network Vulnerability Assessment?

A network vulnerability assessment is a systematic evaluation of your systems and network to identify, quantify, and prioritize security weaknesses. Per NIST SP 800-115, the process typically includes external network discovery, port scanning, vulnerability scanning, and validation testing.

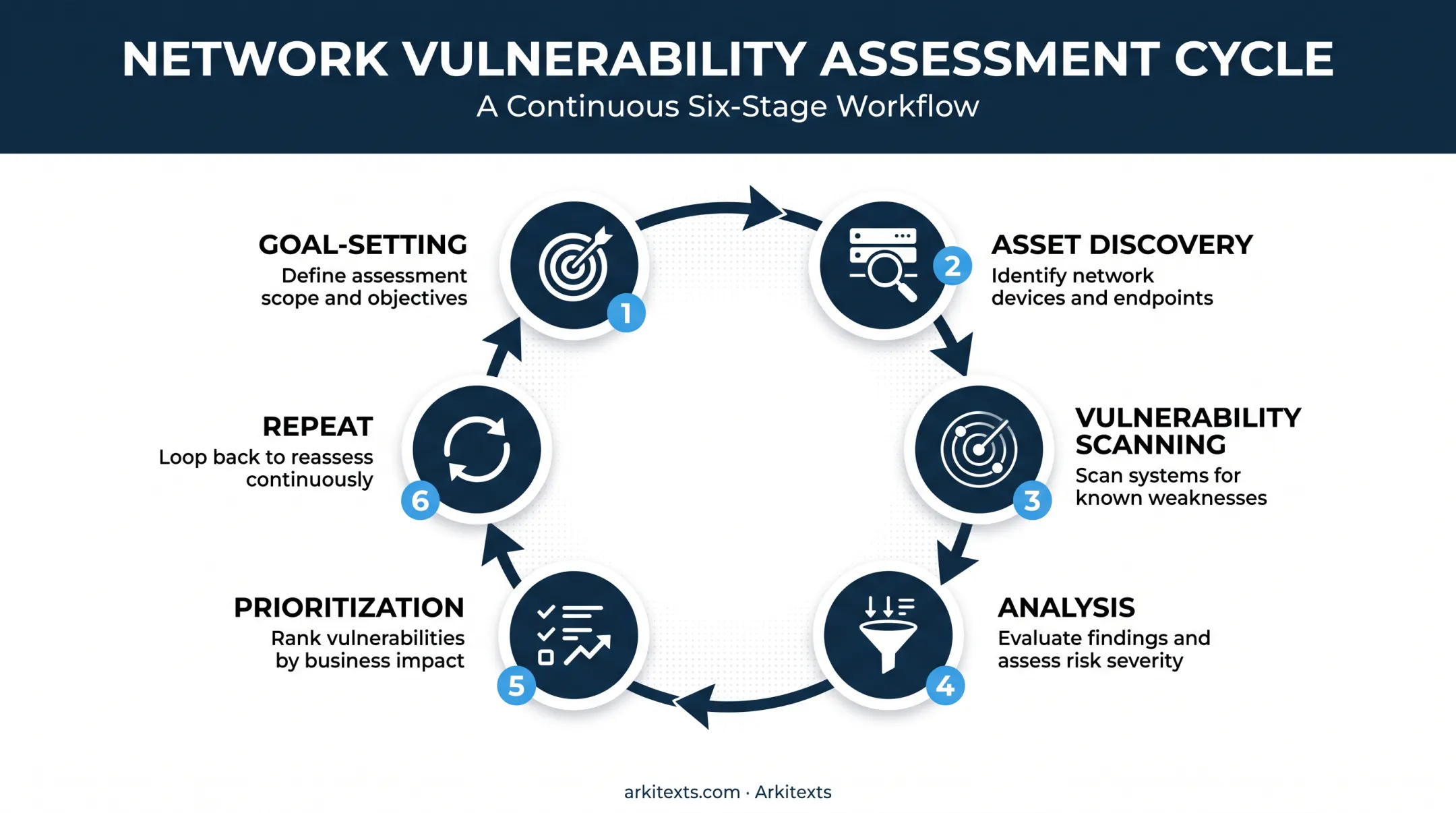

The full cycle looks like this:

1. Goal-setting: Define what you're protecting and why it matters to the business
2. Asset discovery: Inventory every device, application, and cloud service on the network
3. Vulnerability scanning: Run automated tools against known weakness databases
4. Analysis: Separate exploitable risks from false positives and low-priority noise
5. Prioritization: Rank issues by severity and business impact
6. Repeat: Reassess on a schedule, since new vulnerabilities appear continuously

Common Root Causes

Most vulnerabilities trace back to a handful of recurring problems:

• Outdated software running unpatched code
• Misconfigured firewalls or cloud settings
• Weak or reused passwords
• Shadow IT (unauthorized devices or apps)
• Plain human error

Assessment vs. Penetration Testing vs. Vulnerability Management

These three terms are easy to confuse. Here's how they differ:

• Vulnerability assessment: An inside-out scan that finds known weaknesses without exploiting them
• Penetration testing: An outside-in simulated attack that actively exploits what the scan finds
• Vulnerability management: The ongoing program that uses assessments as one recurring input

Assessments themselves come in several forms—network, host, wireless, and application—each aimed at a different layer of the environment.

That distinction matters for compliance, because major frameworks write assessment cadence into the rules. PCI DSS mandates internal and external network scans at least quarterly and after any significant network change. HIPAA requires ongoing risk analysis with periodic technical evaluations.

Miss those intervals and you face technical exposure and regulatory liability at the same time.

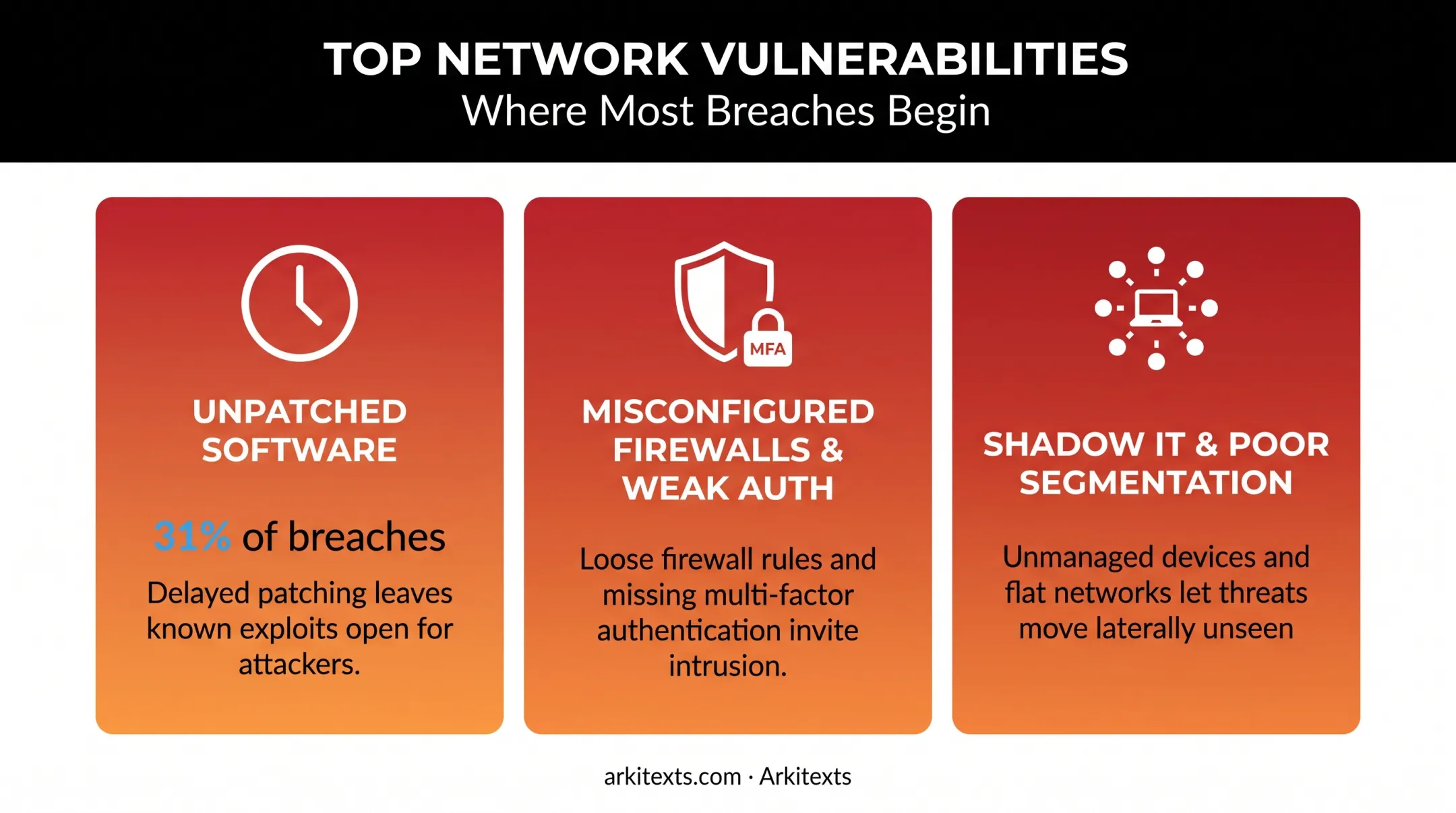

Common Network Vulnerabilities Businesses Should Watch For

Attackers don't need zero-days when businesses leave the front door open. Here's what shows up most often.

• Unpatched and legacy software. The 2026 Verizon Data Breach Investigations Report found software vulnerabilities were the top initial attack vector, involved in 31% of breaches. Every day a patch sits unapplied extends the window an attacker has to walk through it.
• Misconfigured firewalls and weak authentication. Overly permissive firewall rules and missing multi-factor authentication remain easy entry points. CISA has repeatedly flagged that weak security controls are routinely exploited by threat actors, with absence of MFA called out as a recurring gap.
• Shadow IT and poor segmentation. Unauthorized devices, unvetted personal cloud apps, and flat architecture with no department segmentation create lateral paths attackers can move through once they're in.

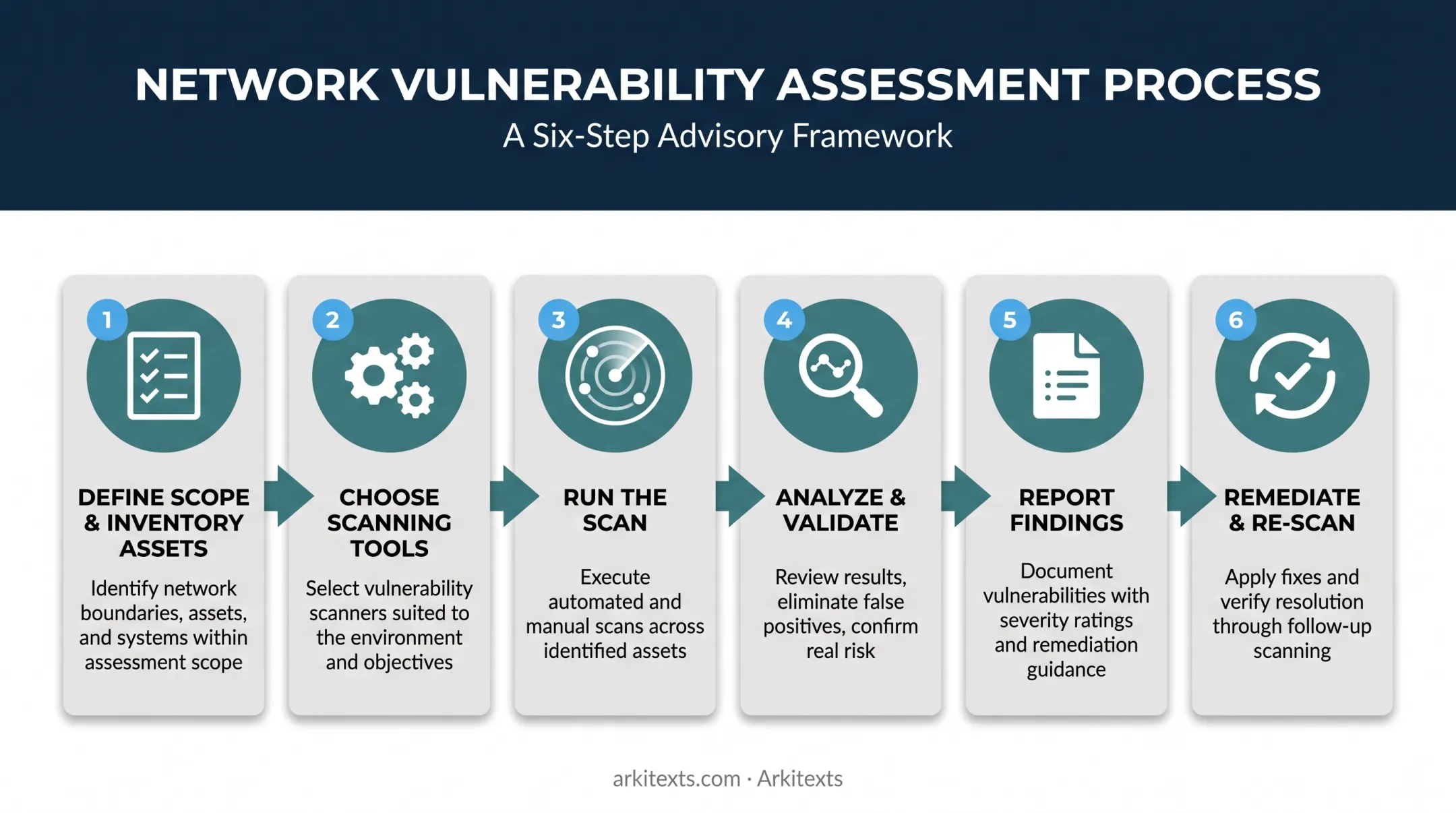

How to Perform a Network Vulnerability Assessment: Step-by-Step

Here's the actual workflow, from scoping through re-verification.

1. Define scope and inventory assets. List every piece of hardware, software, and cloud service in play. You can't protect what you don't know exists.

2. Choose scanning tools and configure parameters. Set target IP ranges, ports, protocols, and scan timing to avoid disrupting production systems.

3. Run the scan. Execute scanning, enumeration, and vulnerability detection to produce a raw list of potential issues.

4. Analyze and validate. Manually verify findings to strip out false positives, then prioritize by severity and how critical the affected asset is.

5. Report findings. Give stakeholders clear remediation recommendations, not just a wall of technical jargon.

6. Remediate and re-scan. Patch, reconfigure, or apply compensating controls, then re-scan to confirm the fix actually worked.

That last step is the one businesses skip most, and it's costly. The FTC's 2019 settlement with Equifax detailed how the company failed to patch a known critical vulnerability after being alerted, a failure that contributed directly to its 2017 breach affecting 147 million people.

Patching without verification isn't patching. CISA's own emergency directives on Ivanti vulnerabilities went further, requiring password resets and token revocation before systems could return to service, not just a patch and a prayer.

Vulnerability Assessment vs. Penetration Testing vs. SOC: Clearing Up the Confusion

These three get lumped together constantly. They're not interchangeable.

Function	What It Does	Timing
Vulnerability Assessment	Scans broadly for known weaknesses	Point-in-time, recurring
Penetration Testing	Manually exploits weaknesses to test real impact	Point-in-time, periodic
SOC (Security Operations Center)	Always-on monitoring and incident response	Continuous, 24/7

Vulnerability assessments and penetration tests aren't competitors to a SOC. They're complementary. Assessments and pen tests find and validate weaknesses on a schedule. A SOC watches your environment every hour of every day for signs those weaknesses are being exploited.

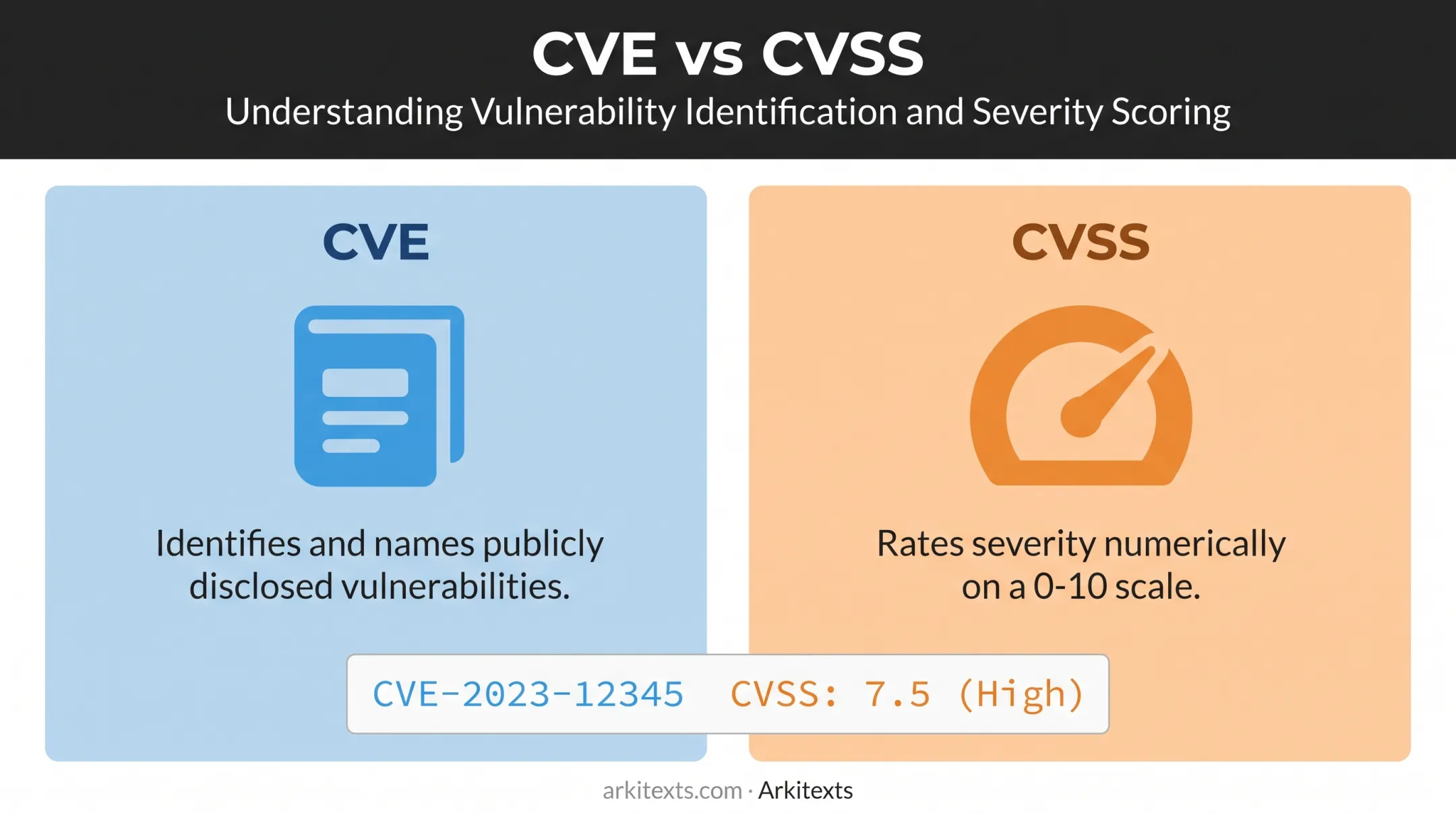

CVE vs. CVSS: Reading Your Scan Report

After an assessment, the scan report introduces two more acronyms you'll see constantly:

• CVE: A catalog system that identifies and defines publicly disclosed vulnerabilities
• CVSS: A numeric scoring system rating how severe each vulnerability is

CVE tells you what the vulnerability is. CVSS tells you how bad it is. Together, they let you triage a report full of findings instead of guessing where to start.

Assessment Frequency and Getting Unbiased Guidance

Quarterly is the baseline, aligning with PCI DSS requirements and NIST SP 800-53's guidance to scan at an organization-defined frequency and whenever new vulnerabilities emerge. But quarterly isn't right for everyone.

Consider more frequent scanning if:

• You're internet-facing or handle regulated data (monthly or weekly)
• Your infrastructure changes often (new servers, offices, cloud migrations)
• You've experienced a major network change (scan immediately after)
• The broader threat landscape shifts (new CVE categories, active exploitation campaigns)

Frequency is only half the decision. Most businesses also struggle to pick tools and providers without getting steered toward whatever a vendor happens to sell.

Arkitexts is a vendor-neutral technology advisory firm. It offers no-cost vulnerability assessments that identify weaknesses across your IT and network environment, plus lifetime continuous network assessment as that environment changes.

The firm runs on an agency commission model—vendors pay commissions, not clients—so advice isn't tied to one security product line:

• Compare firewall, MFA, or managed security options against your requirements
• Avoid preferred-partner shortlists that lock you into a single vendor
• Keep recommendations aligned to risk findings, not reseller incentives

Frequently Asked Questions

How do you perform a vulnerability assessment?

Define scope and inventory your assets, run scans against your network, analyze and validate the results, prioritize by severity, remediate the issues, and re-scan to confirm they're fixed.

What is a security vulnerability assessment?

It's a systematic evaluation of systems and networks to identify, quantify, and prioritize security weaknesses before an attacker finds and exploits them.

What are vulnerabilities in network security?

Common examples include unpatched software, misconfigured firewalls, weak or reused credentials, missing MFA, and unauthorized shadow IT devices connected to the network.

Which is better, VAPT or SOC?

Neither is "better," they serve different purposes. VAPT periodically finds and validates weaknesses, while a SOC provides continuous, 24/7 monitoring and incident response. Most mature security programs use both.

What are the 7 steps of pen testing?

Planning, reconnaissance, scanning, gaining access, maintaining access, analysis, and reporting. It's a more hands-on, exploit-driven process than a standard vulnerability scan.

What's the difference between CVE and CVSS?

CVE is a naming and cataloging system for known, publicly disclosed vulnerabilities. CVSS is the numeric scoring system used to rate how severe each one is.
